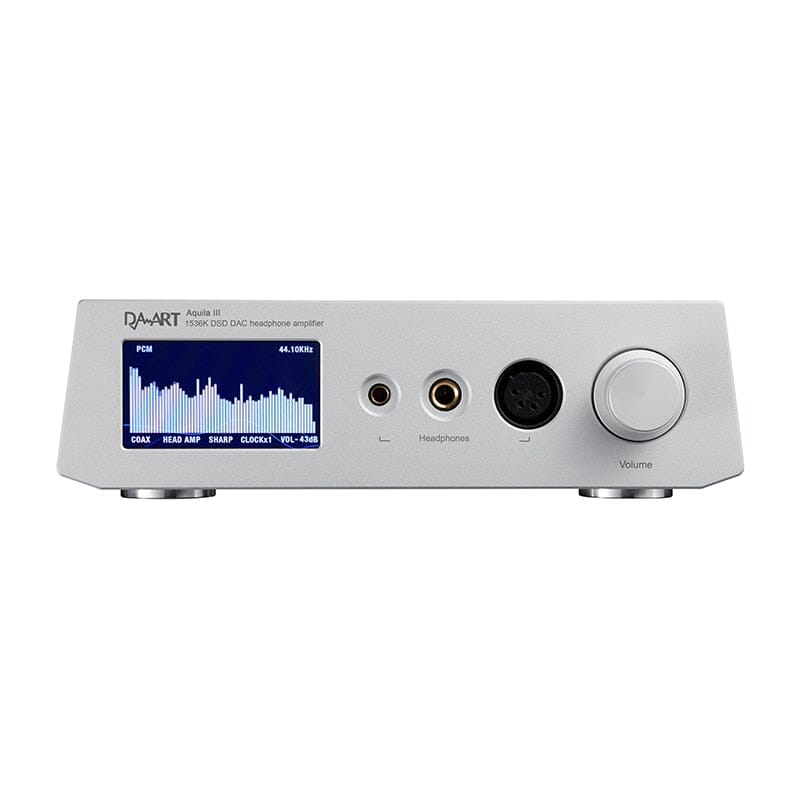

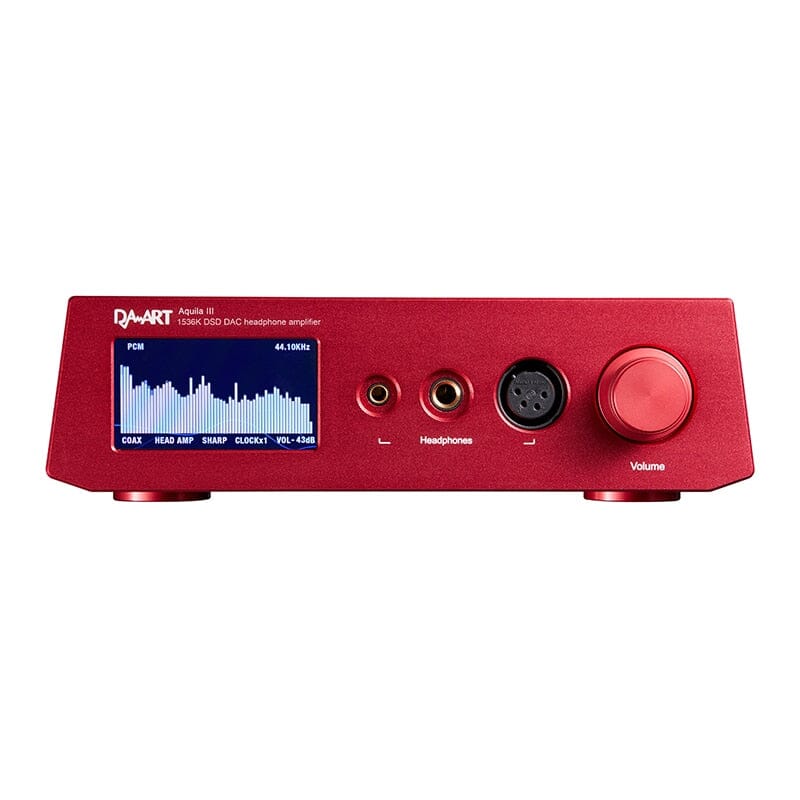

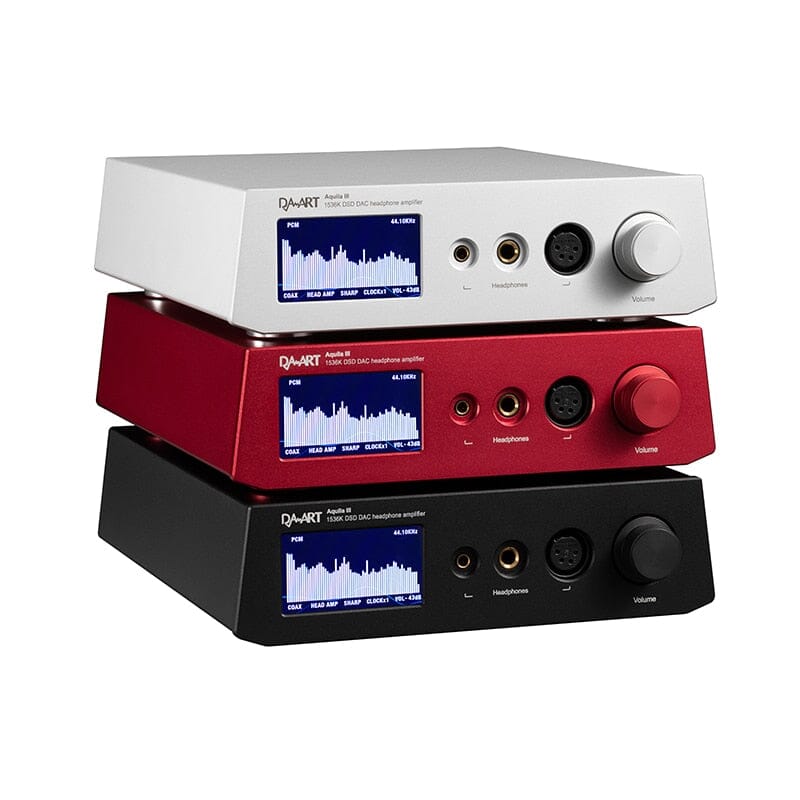

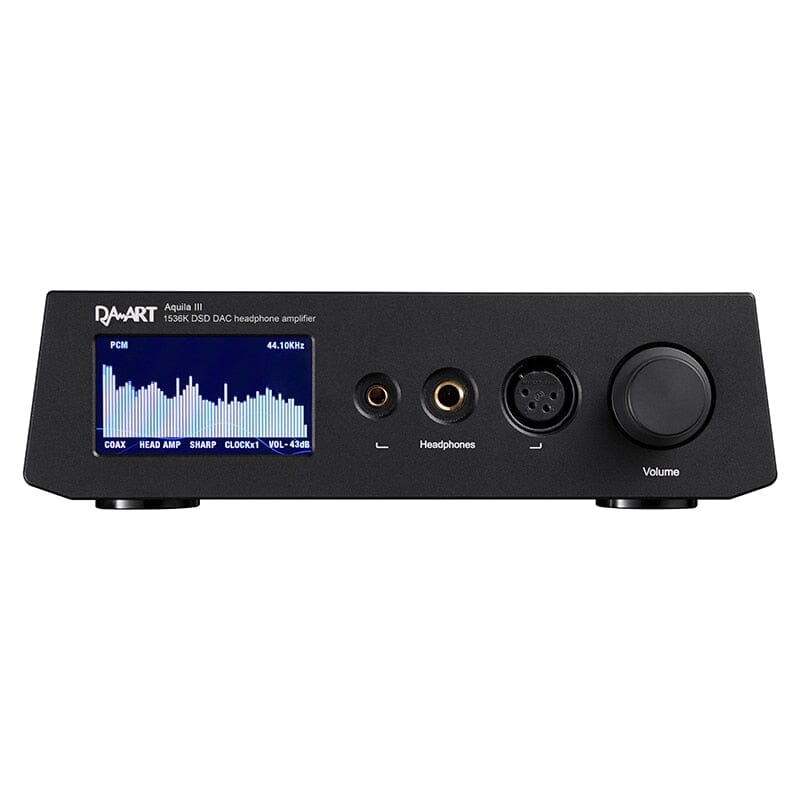

Premium DAART Yulong Aquila III AK4499EX DAC & Headphone Amplifier Combo with DSD1024 Support - Perfect for Audiophiles, Home Studios & Hi-Fi Listening Sessions

Features:-

>Proprietary USB Interface With ARM + FPGA Architecture.

>High-End AK4499EX+AK4191 Chipset.

>Supports Hardware Decoding Up to PCM 32-Bit/1536kHz & Native DSD1024 signals.

>High-Res Display with Spectral Analyser.

>5th Generation Jitter & Interface Control(JIC) System.

>Dual Clock Sync.

>Different Filters.

>Multiple Independently Regulated Power Supply with two toroidal transformers.

>High-Current Line-Output.

>Fully Balanced Headphone Amp Chipset.

>99-Steps Digital Controlled Analog Level Volume Control.

>Seamless Design With Compact & Sleek Aluminum Chassis.

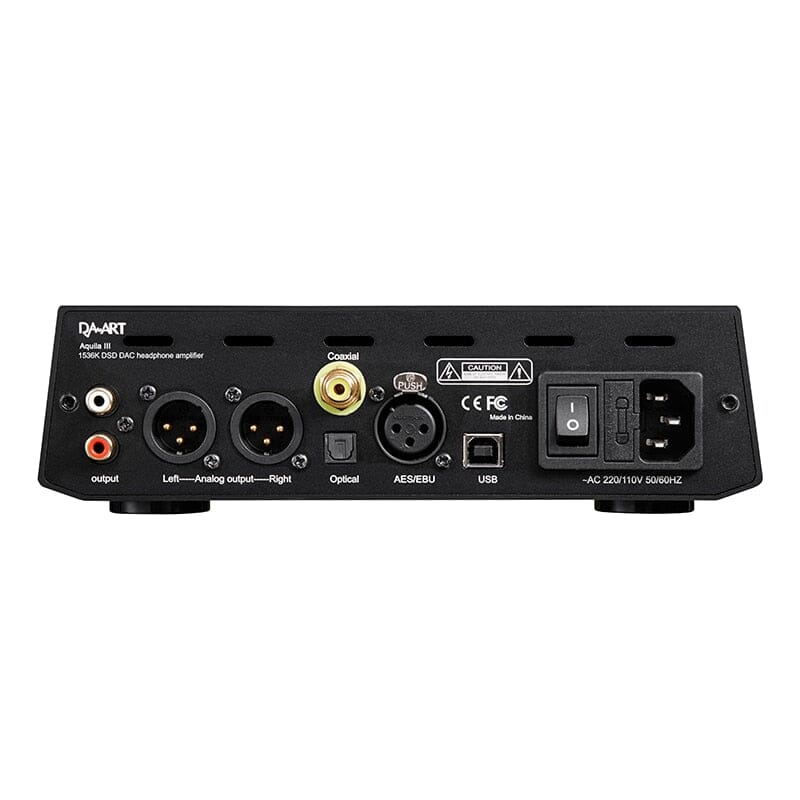

>Supports Coax, Optical, AES Inputs.

>Standalone Pre-AMP Function.

>4-Watt Per Channel Pure Class A Output.

>4.4mm Bal, 6.35mm Single-Ended, and 4-pin XLR Balanced Headphone Outputs.

>XLR & RCA Line/Pre-Out Function.

Technical Specs:-

>Decoding: Up to 32-Bit/1536kHz PCM & Native DSD1024(USB), Up to 24-Bit/384kHz PCM & DSD DoP128(Coax, AES, Optical).

>Power Consumption: <30W.

>Dimension: 248mm x 210mm x 60mm.

>Weight: 4Kg.

Headphone Output Specifications:-

>Power Output: Up to 4000mW(32Ω, Balanced).

>Frequency Response; 20Hz-30kHz.

>THD+N: 0.001%.

>Output Impedance: <1Ω.

Pre-Amp Output Specifications:-

>Output Level: Up to 12V(Bal), Up to 6V(Single-Ended).

>Frequency Response: 20Hz-30kHz.

>THD+N: 0.001%.

>SNR: 110dB.

>Output Impedance: >20Ω.

DAC Specifications:-

>Output Level: Up to 6V(XLR), Up to 3V(RCA).

>Frequency Response: 20Hz-30kHz.

>THD+N: 0.0001%.

>DNR: 125dB.

>SNR: 125dB.

>Crosstalk: <-120dB.

>Output Impedance: <20Ω.

---SpecificationsSplit---

DAART Yulong Aquila III is a high-end desktop all-in-one DAC and AMP that supports high-resolution audio signal decoding, pre-amp function, and powerful headphone amplifier function. The device comes equipped with a proprietary USB interface featuring high-end AK4191 and AK4499EX DAC chips that supports decoding for high-resolution 32-Bit/1536kHz files and native DSD1024 files. It also features a high-resolution display screen that showcases different settings as well as includes a spectral analyzer. DAART Yulong III houses a 5th generation Jitter and Interface control system that ensures clean and precise audio decoding. It has a powerful pure class A output with an outstanding power rating of up to 4W per channel, driving most headphones with ease!!

Powerful Digital Processing Circuit:-

The 5th generation Yulong Aquilla III features a professionally designed Jitter and Interface control(JIC) system that features an ARM microprocessor on top of the FPGA platform, a Femtosecond clock, a USB interface, a SPDIF demodulator, a FIFO Buffer, and a PLL Synchroniser that enables outstanding sound signal management. Be ensured, you will get top-quality performance with this all-in-one Desktop DAC/Amp.

Packed With Top-Quality Components:-

Yulong Aquilla III houses top-quality components in its audio circuitry. It features AKM’s trusted AK4191 chipset with an AK4499EX DAC chip. The AK4499EX is the latest 32-bit DAC that enables high-resolution audio signal decoding and that too with great precision and quality!!

Supports High-Resolution Audio Signal Decoding:-

Yulong Aquilla III supports all leading audio signal decoding with support for DSD1024 and PCM 32-Bit/1536kHz signals via USB input. All other inputs support PCM 384kHz and DSD DoP128.

Finely-Tuned For All Situations:-

With years of expertise in designing high-end audio equipment, Aquilla III is an all-in-one DAC and Headphone amplifier that fits in every scenario. You can use the device in DAC-only mode providing line-out to further amplifiers in the chain, it can also be used as a pre-amp for power amplifiers and as a headphone amplifier for your headphones. It drives the headphones with full authority producing up to 4W of clean power per channel.

Outstanding Performance With Linear Power Supply System:-

DAART has designed the Yulong Aquilla III with multiple independently regulated multi-stage linear power supplies with 1.7nV regulators for V_Ref. It is powered by two toroidal transformers, and this power supply provides clean power to both digital and analog circuits. The resulting performance is clean and has no interference issues at all.

High-Resolution Display Screen:-

DAART Yulong Aquilla III features a high-resolution crisp display screen that shows various settings regarding the input signal, output mode, volume settings, etc. It also shows a beautiful and engaging spectral display that greatly enhances the look of the device on your desktop.

Electronically Controlled Analog Volume Control:-

DAART Yulong Aquilla III brings precise volume adjustment to the tablet. It features a 99-level digital volume adjustment for the analog volume chipset on the motherboard. The volume adjustment is precise and natural with no imbalance between the two channels.
