FiiO BTR5 2021 Portable Bluetooth DAC/Amp with MQA Support, ES9219C Dual DAC, Native DSD Decoding - Perfect for Hi-Fi Music Streaming, Gaming & Mobile Audio Enhancement

Flagship Portable High-Fidelity Bluetooth 5.0 amplifier

Features:-

>High-performance Dual DAC chipset(Dual ES9218C).

>Flagship-grade CSR8675 Bluetooth Chip.

>FPGA clock management.

>Dual independent crystal oscillators.

>Bluetooth V5.0 with full hi-res codec support.

>Independent XMOS XU208 USB processor.

>MQA Decoding.

>PCM support up to 32-Bit/384kHz and DSD256 native support(USB connection).

>Two-level Gain mode.

>Double-sided 2.5D glass with OLED display.

>3.5mm+2.5mm headphone output.

>FiiO Music application support.

>One-touch NFC pairing.

>In-Line Remote and Mic Support.

Technical Parameters:-

>Volume Steps: Bluetooth: 32 steps, USB DAC: 60 steps.

>Battery capacity: 550mAh.

>Battery Life: up to 9H(3.5mm), Up to 7H(2.5mm).

>Charging time: 1.5H.

3.5mm Headphone out parameters:-

>Output Power: up to 80mW(32ohm).

>SNR: -118dB.

>Noise floor: <2uV.

>THD+N: <0.004%.

>Separation: 79dB.

2.5mm Balanced Headphone out parameters:-

>Output Power: up to 240mW(32ohm).

>SNR: -122dB.

>Noise floor: <2.2uV.

>THD+N: <0.002%.

>Separation: 117dB.



FiiO has revamped its highly-acclaimed BTR5 Bluetooth DAC/AMP with MQA decoding support. BTR5 is among the top-selling products in FiiO's lineup, only because of its high-resolution wireless Bluetooth performance. Now enjoy crisp MQA decoding with the BTR5 2021.

MQA Decoding:-

Our trusted BTR5 now has support for MQA decoding. MQA, Master Quality Authenticated has become a new standard for high-resolution audio. FiiO has included MQA decoding support with the BTR5 2021, Users will be able to enjoy high-resolution MQA files to their full potential. Please note, MQA will be supported via USB connections.

Dual DAC Setup for Neat Sound Quality:-

The FiiO BTR5 employs two High-Performance ESS ES9218PRO DAC Chips in a dual fully balanced design to provide high-resolution sound with the best dynamics and sound quality. The Dual DAC's work together to give out a power output of 220mW at 32ohms load and 7.6Vpp at 300 ohms.

Dual Headphone Output ports:

The BTR5 features both balanced and single-ended outputs. In its truly balanced audio architecture, each channel is driven separately from the other with its own DAC and amplifier, enabling the BTR5 of producing a pure sound with unmatched accuracy and transparency.

*In order to ensure the BTR5 operates normally when both 3.5mm and 2.5mm outputs are used, only the 3.5mm port will output sound.

Qualcomm CSR8675 flagship Bluetooth chip:

The BTR5 uses the premium flagship Qualcomm CSR8675 Bluetooth chip.

A low-power solution designed for enhanced audio applications with support for 24-bit transmission and processing, thanks to its 120MHz DSP achieving low distortion and high signal-to-noise ratio.

The FiiO BTR5 supports all the latest Bluetooth codecs including SBC, AAC, aptX, APT HD, aptX LL, and LDAC.

The BTR5 also supports aptX LL(low-latency encoding), with less than 40ms of delay.

Longer Battery For Longer Music Sessions:-

The FiiO BTR 5 features a battery of 550mAh, which provides continuous music playback of up to 9 hours, and even if that is not enough, the BTR 5 just needs 1.5 hours of charging time to fully charge.

FPGA precision clock management:

The BTR5 employs the FPGA chips which are responsible not only for transmitting and receiving all Bluetooth and digital audio signals but also for highly precise clock management, leading to greatly reduced jitter and greatly improved signal stability.

Independent dual crystal oscillators:

To perfectly reproduce the analog audio signals, the BTR5 utilizes a dedicated FPGA, the 45.1584/49.152MHz dual crystal oscillators, giving it extreme accuracy in reproducing full frequencies under any sample rate.

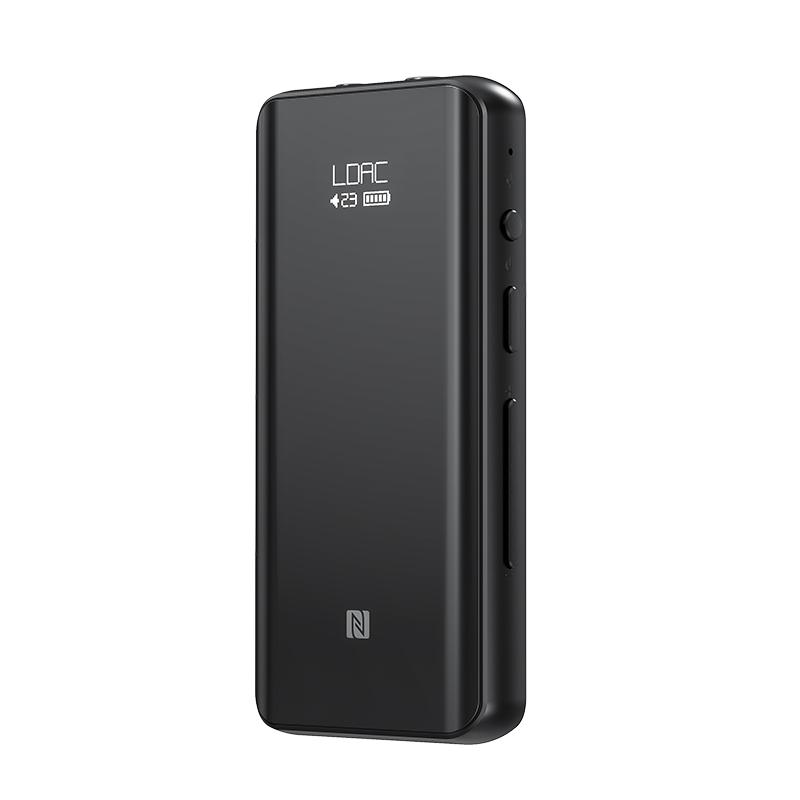

High-resolution OLED Display:

The FiiO BTR5 features a 0.49 inch OLED screen that displays the pairing mode, connection status, call status, power status, encoding format, and volume, which you can also use to view charging status, adjust or change EQ setting, enable car mode and more.

Dual Mics with cVc 8.0 Noise Cancellation:-

The FiiO BTR5 has two built-in high-sensitivity omnidirectional microphones with cVc 8.0 noise cancellation technology, which automatically adjusts the microphone's gain level and suppresses the background noise giving you crystal clear calls.

One-Touch NFC Connection:-

The BTR5 built-in NFC allows you to connect to other NFC compatible devices with a single tap of a button.

Strong and Ergonomic Build:

The BTR5 has a Solid premium feel to it. The body is built out of strong aluminum alloy. Beautifully finished with a curved glass on the front and back, along with a layer of an oleophobic coating for a silky smooth touch and to prevent fingerprint buildup, this small portable gem complements your sense of style.

One multi-function button:

With a single multi-function button, you can control the following: pairing/play/pause/accept call/hang up/cancel/force pair/open voice assistant. If you disconnect via Bluetooth from another device, simply press the multi-function button briefly to re-pair with the other device. When paired to a phone, simply double-click the multi-function button to wake up your voice assistant.

FiiO Music App:

By downloading the FiiO Music app, you can remotely control the BTR5’s channel balance, switch between different DAC reconstruction filters, or adjust the equalizer, adjust odd and even-order harmonic distortion, allowing you to have your own personal music DJ and explore the facets of your music in ways you could never imagine.

*The Equalizer does not work for the LDAC codec.

A Stylish Case:

The BTR5 comes with a clear case that provides 360° of all-around protection and a detachable back clip that allows you to wear it vertically or horizontally.



Updates in FiiO BTR5 compared to BTR3

1. Update from Bluetooth 4.2 to Bluetooth 5.0

BTR5 with Bluetooth 5.0 offers a more stable connection at twice speed and four times of range of Bluetooth 4.2. This increase in range, plus the ability to transmit audio to two devices, means that people could send audio to multiple rooms in a house, create a stereo effect in one space, or share audio between two sets of headphones.

2. Update battery capacity from 300mAh to 500mAh

The 300mAh battery in the BTR3 takes only 1.5 hours to fully charge but allows for a lengthy 11 hours of playback! And 500mAh battery in BTR5 delivers 12 hours of playback with 2hours of quick charging.

3. Update DAC chip from AK4376A to Dual ES9218

Comparing with AK4376A DAC in the BTR3, Dual DAC ES9218 in BTR5 offers high resolution, clear and powerful output with low output impedance, while being very power efficient. This change not only has the signal-to-noise ratio (SNR) increased, but distortion has also been reduced for greatly improved sound quality.

4. FiiO BTR5 Weighs slightly more.

The dimensions of the BTR5 are 72*32*11.3 while the BTR3 is 58*25*10.4 mm. Because of increased battery capacity, the weight of BTR5 has increased to 43.7g from 25g but still very light & portable.
